Belt Scales
High-precision feed rate measurement with up to 0.15% accuracy, designed for easy retrofit to existing conveyors.
Overview

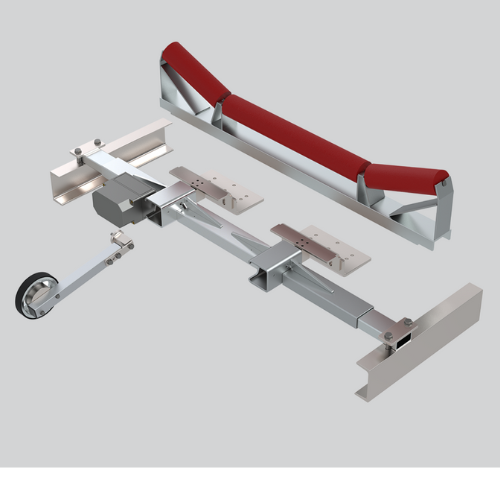

The WÖHWA Belt Scale is a feed rate measuring assembly that can be fitted under a belt conveyor on a new installation, retrofitted to an existing belt conveyor, or integrated into a belt feeder to create a weigh belt feeder. The design is optimised to be able to retrofit the unit on an existing belt conveyor by removing existing idlers and replacing them with the belt scale. The support beams are telescopic and adjustable in length to fit existing belt conveyor widths. Mass sensing is done using a single load cell that supports the belt conveyor idler assembly.
Features & Benefits
High Dosing and Measuring Accuracy up to 0.15%
Telescopic Design for Easy Retrofit
Belt Speeds of Over 3 m/s
Hermetically Sealed Aluminum Single-Point Load Cell
Breaking Load of 300%
High-Resolution Measuring Wheels Included
Hot-Dip Galvanized, Dirt Resistant
Suitable for Harsh Environments

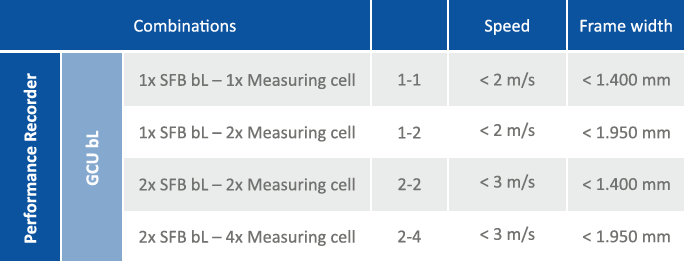

Up to 4 Load Cells per Installation
Legal-For-Trade Certified
Applications
MiningCementChemicalFood ProcessingAgriculturePower Generation
